JNN Water Pump Intelligent Controller With Capacitor for Submersible Pumps - White

• Product details of

Brand Name: JNN

Model Number: 20Y-CBB

Voltage: AC220-240V(1-Phase)

Power Source: Electric

Horse Power: 0.5-3KW

Power: 0.37-2.2KW

Pressure: High Pressure

Feature: Energy saving

Product Certifications: CE

Material: ABS

Whether the Smart: Yes

Place of Origin: China

Warranty: 2 Years

Application: Developing World Water Solutions

• About this product

Energy-Efficient Design: This 2-inch water pump intelligent controller with capacitor is designed to optimize energy consumption, ensuring reduced operational costs for various applications, including family homes, food and beverage industry, and industrial utilities.

Wide Range of Applications: The product is suitable for diverse applications, such as water distribution, drinking water treatment, district energy, and industrial boilers, catering to the needs of various industries and households.

Customized Support Options: As an original manufacturer, we offer customized support for OEM, ODM, and OBM, allowing clients to tailor the product to their specific requirements, including customized design, packaging, and branding.

Durable Construction: Built with high-quality ABS material, the controller is designed to withstand harsh environments and ensure reliable performance over an extended period.

Long-Term Warranty: Backed by a 2-year warranty, this product provides peace of mind for clients, ensuring that their investment is protected against any potential defects or malfunctions.

• PRODUCT DESCRIPTION
• Intelligent Start Capacitor Pump Controller
• The latest single-phase water pump controller of the 20Y series is specially designed for 2.2KW deep well submersible pumps.
• It has non-contact current induction control, extremely fast dry running protection, equipped with
• 75uf, starting capacitor, new appearance patent,
• IP56, and is not afraid of wind and rain

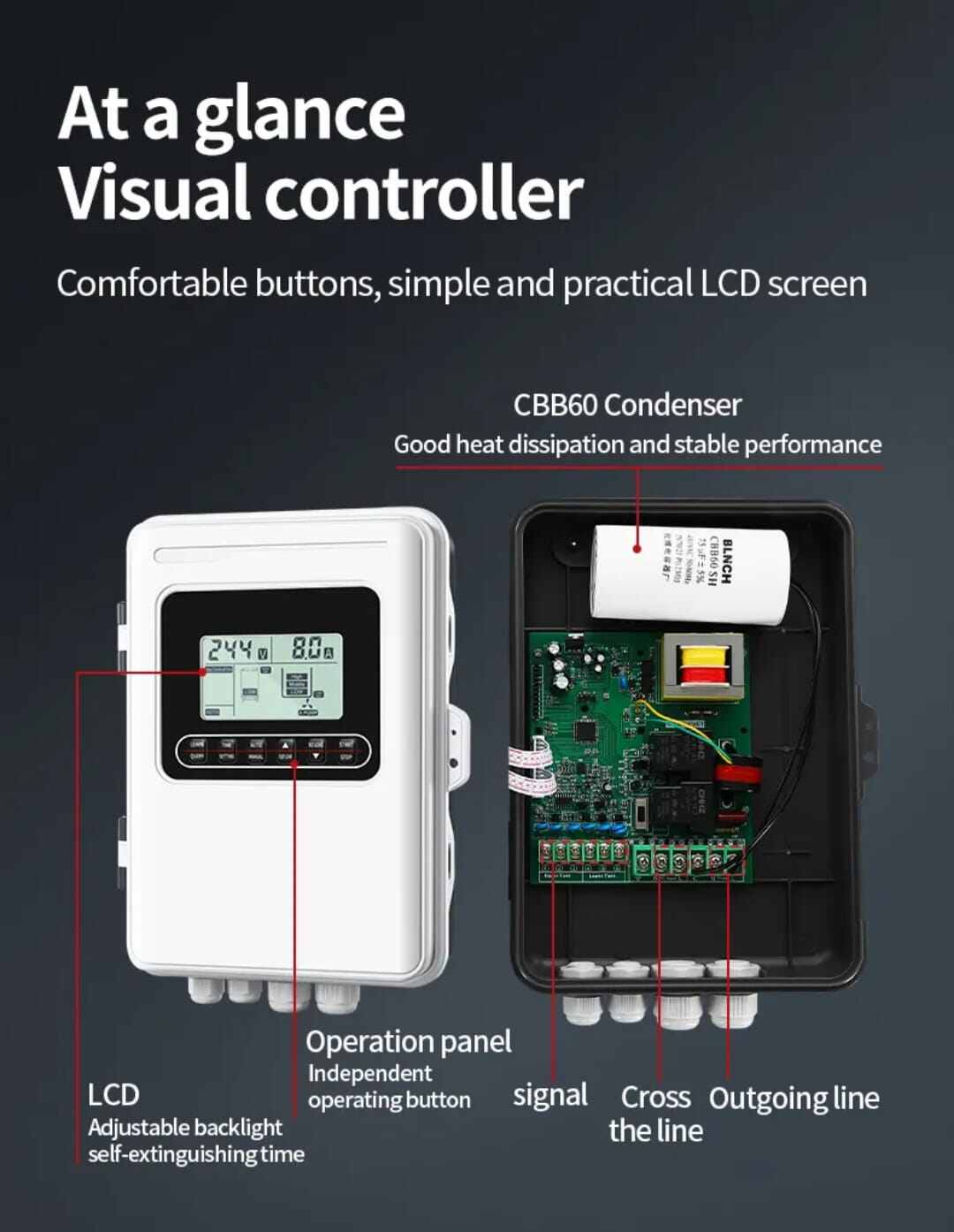

• Internal Components
• 20Y-CBB series single phase water pump controller, with plastic case,LCD display.

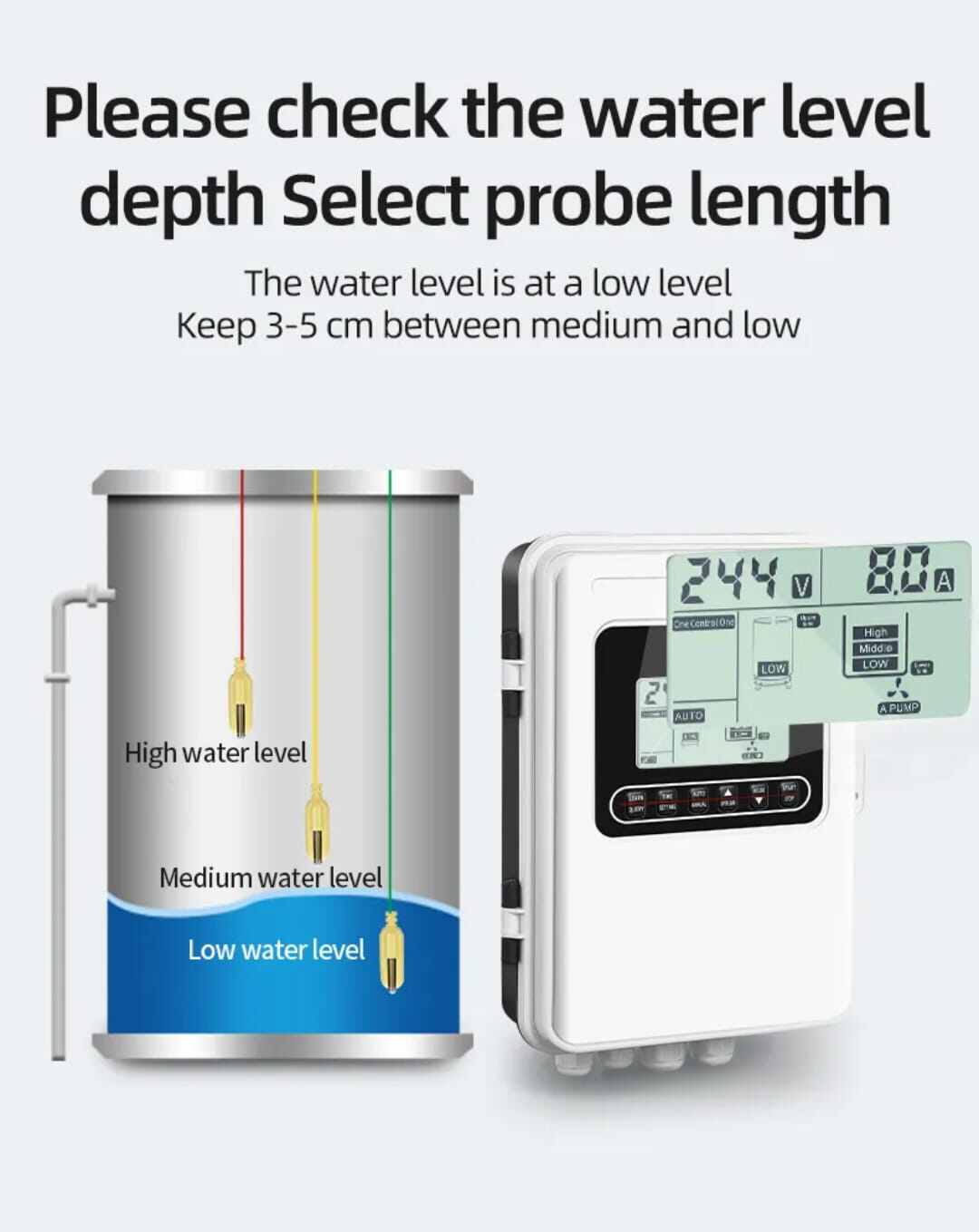

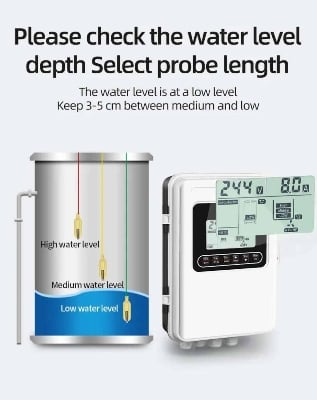

• Can easily connect with liquid probe/ float switch /pressure switch and pressure gauge to
• make the pump run smoothly, mainly for home and Household use .
• Specifications
• Type
• 20Y-CBB
• Model
• 20Y-CBB-2.2KW
• 20Y-CBB-3KW
• Rated Power
• 0.37-2.2KW
• 0.37-3KW
• Rated Input Voltage
• 220VAC,50Hz/60Hz
• Qty.of Controlled Pump
• Single pump
• Display
• LCD display

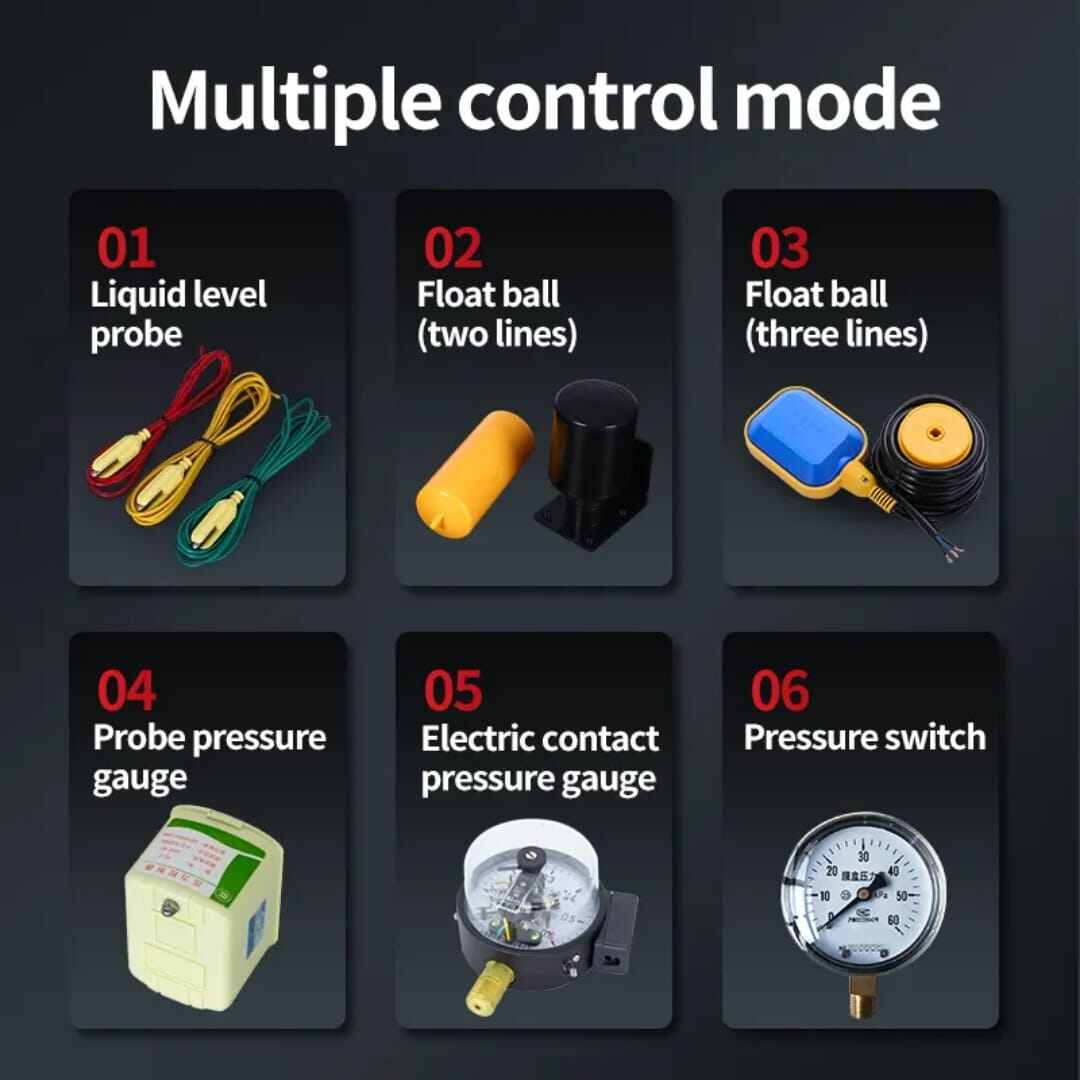

• Signal Transmission Mode
• Level float switch
• Level probe
• Pressure switch
• Electric contact pressure gauge Water
• Level Indication
• High/Middle/Low
• Max.Control Distance
• ≤2000m without strong electric and electromagnetic fields
• Over/under-voltage
• 176V-264V adjustable
• Protections
• Pump stalled protection
• Dry run protection
• Over-load protection
• Under-voltage protection
• Over-voltage protection
• Open phase protection
• Short circuit protection
• Main Functions
• Time setting
• Fault detection
• Anti-rust inspection
• Automatic restart after power recovery
• Time setting ON
• 0-99Hour adjustable
• Time setting OFF
• 0-999Min adjustable
• Over- current setting
• 2-20A adjustable
• Under-current setting
• 0-10A adjustable
• Working temperature
• -20℃+50℃
• Working humidity
• 20%--90%RH, no drips concreted
• Installation
• Wall mounted
• Product Size
• 210*139*65mm ,0.64kgs
• Package

Box size: 21.9*7.4*14.7cm

• Installation Instructions
• Applications
• Apply to booster, farm irrigation, sewage pumps, fountains, water storage tanks, swimming pools, industrial buildings, mining
• pumping systems and other industries related to water treatment

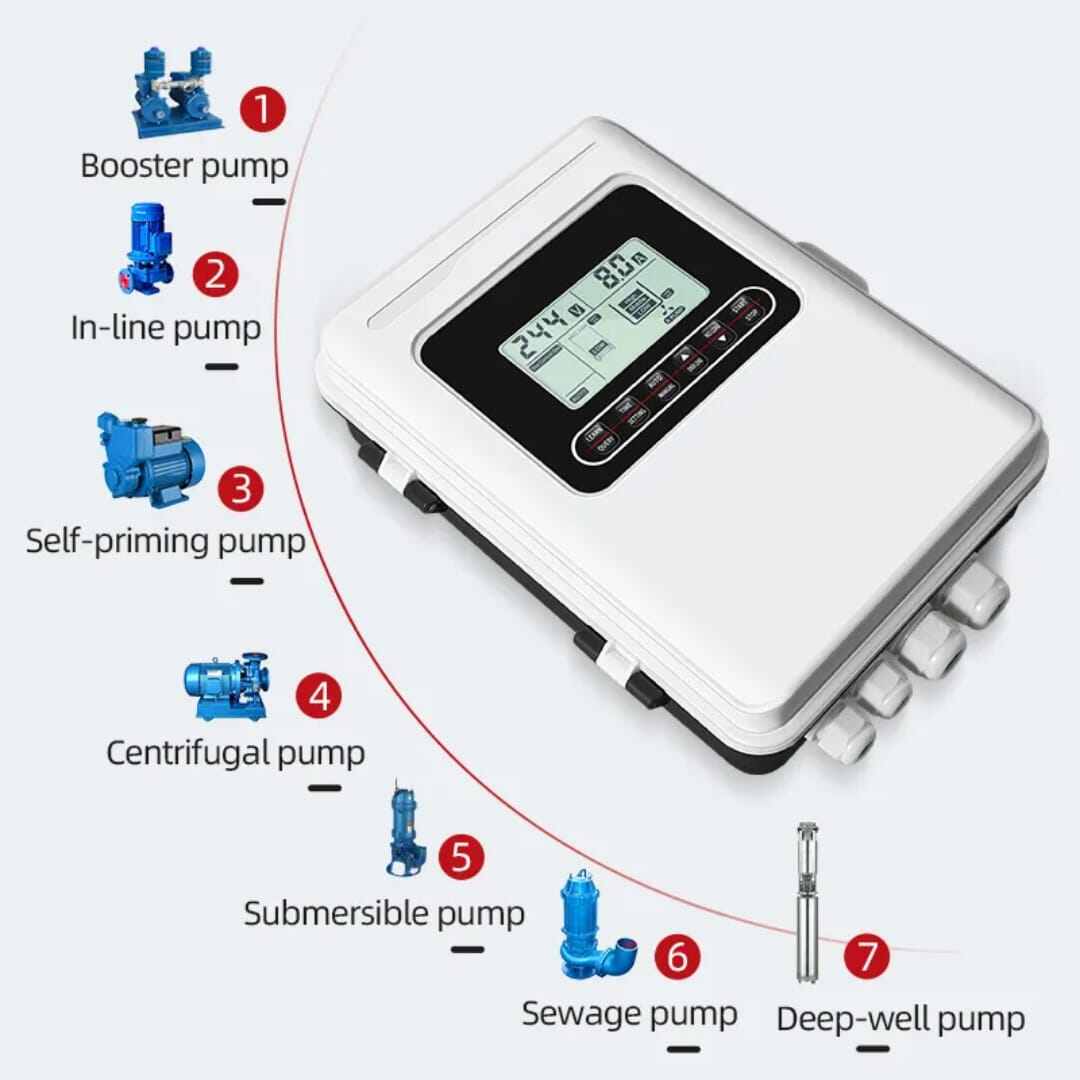

• Suitable for a wide range of pumps, such as submersible pumps, centrifugal pumps, multi-stage pumps, deep well pumps, sewage
• pumps, booster pumps, pipeline pumps, ground pumps.
• Support multiple signal source control
