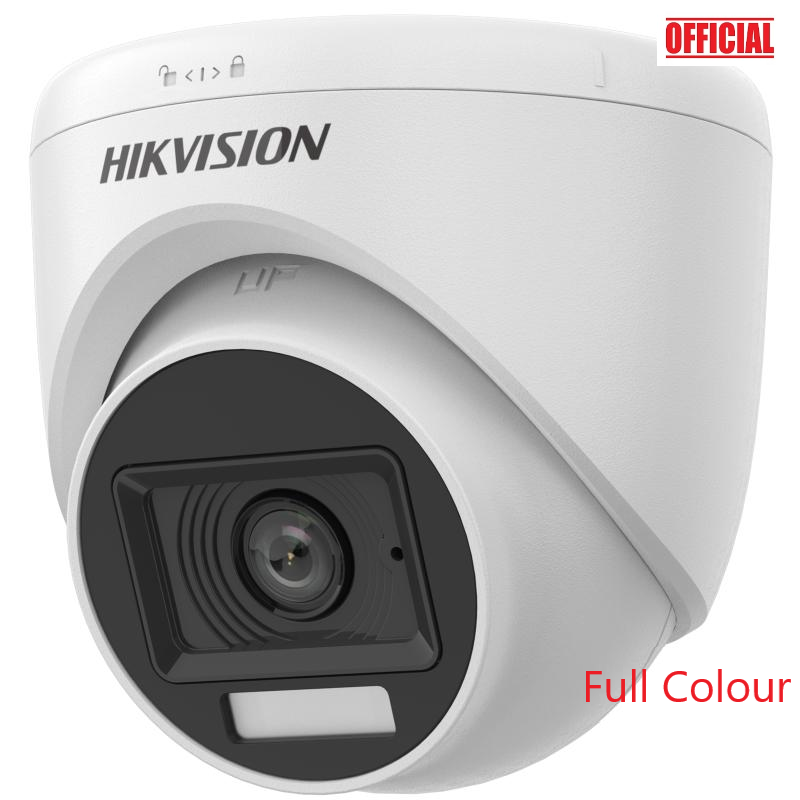

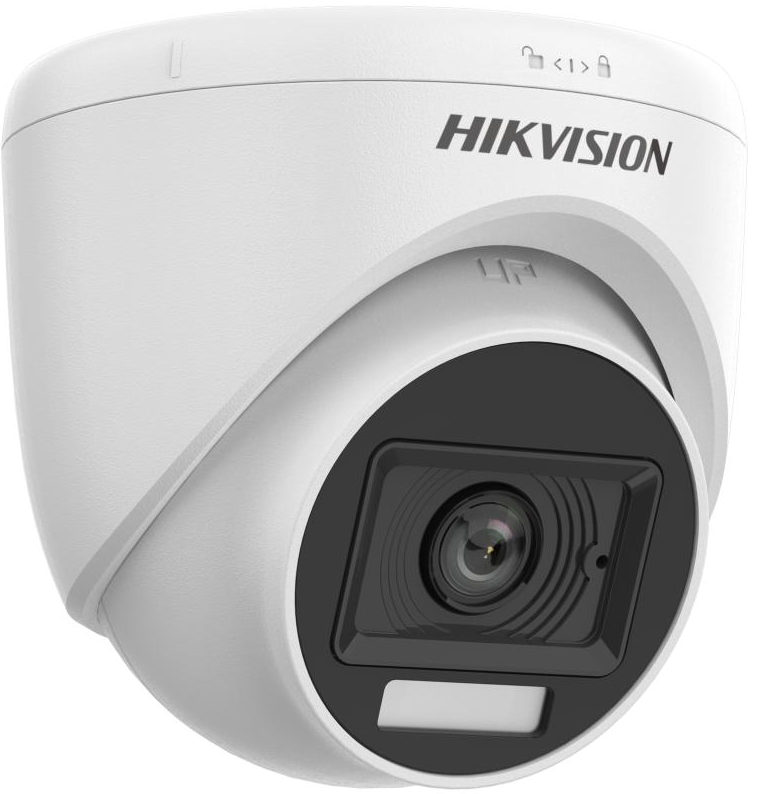

HIKVISION ( Full Colour )DS-2CE76D0T-EXLPF 2.8MM 2 MP SMART HYBRID LIGHT INDOOR FIXED TURRET CAMERA

Camera

• Image Sensor2 MP CMOS
• Max. Resolution1920 (H) × 1080 (V)
• Min. Illumination0.02 Lux @ (F2.2, AGC ON), 0 Lux with IR
• Shutter TimePAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
• Day & NightICR
• Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 75°, Rotate: 0 to 360°
• Signal SystemPAL/NTSC

Lens

• Lens Type2.8 mm, 3.6 mm fixed focal lens
• Focal Length & FOV

2.8 mm, horizontal FOV: 97°, vertical FOV: 54°, diagonal FOV: 113°

3.6 mm, horizontal FOV: 77°, vertical FOV: 43°, diagonal FOV: 90°

• Lens MountM12

Illuminator

• Supplement Light Range

IR : Up to 20 m

White Light : Up to 20 m

• Supplement Light TypeSmart, IR, White Light


• Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT
• Image SettingsBrightness, Sharpness, Smart IR
• Frame Rate

TVI: 1080p @ 30 fps, 1080p @ 25 fps

AHD: 1080p @ 30 fps, 1080p @ 25 fps

CVI: 1080p @ 30 fps, 1080p @ 25 fps

CVBS: PAL/NTSC

• Wide Dynamic Range (WDR)Digital WDR
• Image EnhancementDWDR/BLC/HLC/Global
• White BalanceAuto/Manual
• AGCYes
• Day/Night ModeAuto/Color

Interface

• Video OutputSwitchable TVI/AHD/CVI/CVBS

General

• MaterialPlastic
• DimensionØ85 mm × 84.6 mm (3.35" × 3.33")
• WeightMax. 150 g (0.33 lb.)
• Operating Condition-40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensation)
• CommunicationHIKVISION-C
• LanguageEnglish
• Power Supply

12 VDC ± 25%, Max. 3.5 W

*You are recommended to use one power adapter to supply the power for one camera.
