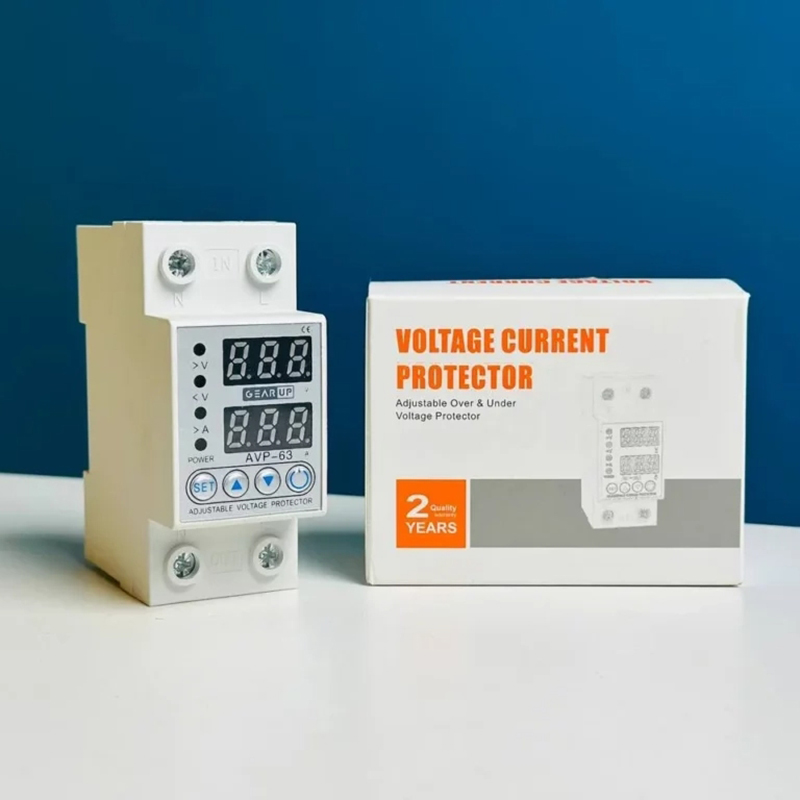

GearUP AVP-63 Automatic Voltage Protector-220V - White

Specifications:

Brand: GearUP

Model: AVP-63

Power Supply: AC: 320V / DC: 80–300V

Voltage Range:

AC: 80–300V (setting), 80–210V (operating)

DC: 130–300V (setting), 80–210V (operating)

Max Current: 40A / 63A (configurable)

Frequency: 50/60Hz (AC only)

Accuracy: Voltage <1%

Response Time:

Overvoltage: 0.5s

Adjustable trip delays

Operating Temperature: -25°C to +50°C

Humidity: ≤50% at 40°C

Altitude Limit: ≤2000m

Size: 512 × 960 mm

Weight: 15kg

Warranty: 1 year (burn and physical damage not covered)

Key Features:

Over-voltage protection

Under-voltage protection

Over-current protection

Automatic recovery after faults

Emergency power-off support

Real-time voltage and current display

Fault and power status indicators

Adjustable thresholds and timing (P-1 to P-17)

Password protection for settings

Usage Notes:

AC mode displays both voltage and current

DC mode displays voltage only

Energy saving mode available

Manual reset needed if auto-recovery is off

Use panel buttons for setup and calibration
