Product details of Digital Wattmeter Smart WIFI/Bluetooth 16A 220V AC Power Meter Electricity Consumption Energy Meter Power Wattage Electricity Meter

Product descriptions from the supplier

Overview

Digital Wattmeter Smart WIFI/Bluetooth 220V AC Power Meter Electricity Consumption Energy Meter Power Wattage Electricity Meter

Product Description

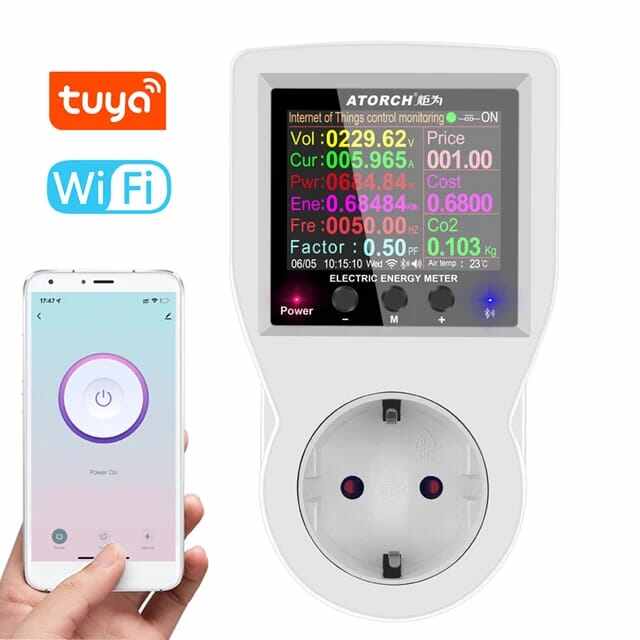

Features: The host is linked to WiFi, cellphone Tuya APP internet access unlimited distance control switch and measurement and power statistics. Adopts 2.4inch clear definition LCD color screen, which can display a variety of content, such as detection of current voltage, current, power, electricity, frequency, power factor, measurement data. Visualization with network UI interface design, easy electricity management, the product connect the WiFi account by entering password, easy access to the Internet, only need to pair once whith its memory function, the another time power on automatically accesses the wifi, easy to use. Two control modes design, support remote manual control, as well as adding multiple groups of timing automatic control, multiple groups of countdown automatic control. Support threshold value setting, dual alert of buzzer and interface display when over limits, over voltage, over current, under voltage display alarm and automatic power off. Remote meter reading by cellphone, you can view the electricity consumption of tenants/daily reports/monthly reports/annual reports through mobilephone APP, real-time records of daily, monthly, annual electricity consumption, easy to know the destination of the electricity bill, so that electricity spending can be tracked. Equipped with astronomical timing function mode, two time periods of sunrise and sunset can be set, turn on or off according to the time you set, you can go out directly when you wake up, and you are no longer afraid of forgetting to turn off the air conditioner or other electrical equipment. One mobile phone controls multiple devices at the same time, a variety of timing can be set, works with AI voice control, suitable for a variety of electrical scenarios. Accurate power on and power off, with countdown switch function, when the socket power is on, countdown is off; When the socket is closed, the countdown is powered on.

Specification:

Model:S1B

Material: ABS + PC

Measuring voltage: AC85-265V

Measuring current: 0-16A Max16A

Power: MAX3680W

Energy Measurement range:0 ~ 99999kWh

Accuracy: +1%

Wireless consumption: <0.3W

frequency: 50 / 60HZ

Power factor: 0-1.00PF

Working temperature: -10°C ~ +60°C degree

Working humidity: <80%

Security Type: WEP64 / WEP128 / TKIP / CCMP (AES)

Dimensions: 133X76X73mm

Weight: 160g

Screen Type:2.4inch TFT-LCD HD Display Panel Graphic 240´RGB´320 Dot-matrix

Date function: month/day

*Remote control

*Timer function Socket

*Countdown function

*Over current Protection

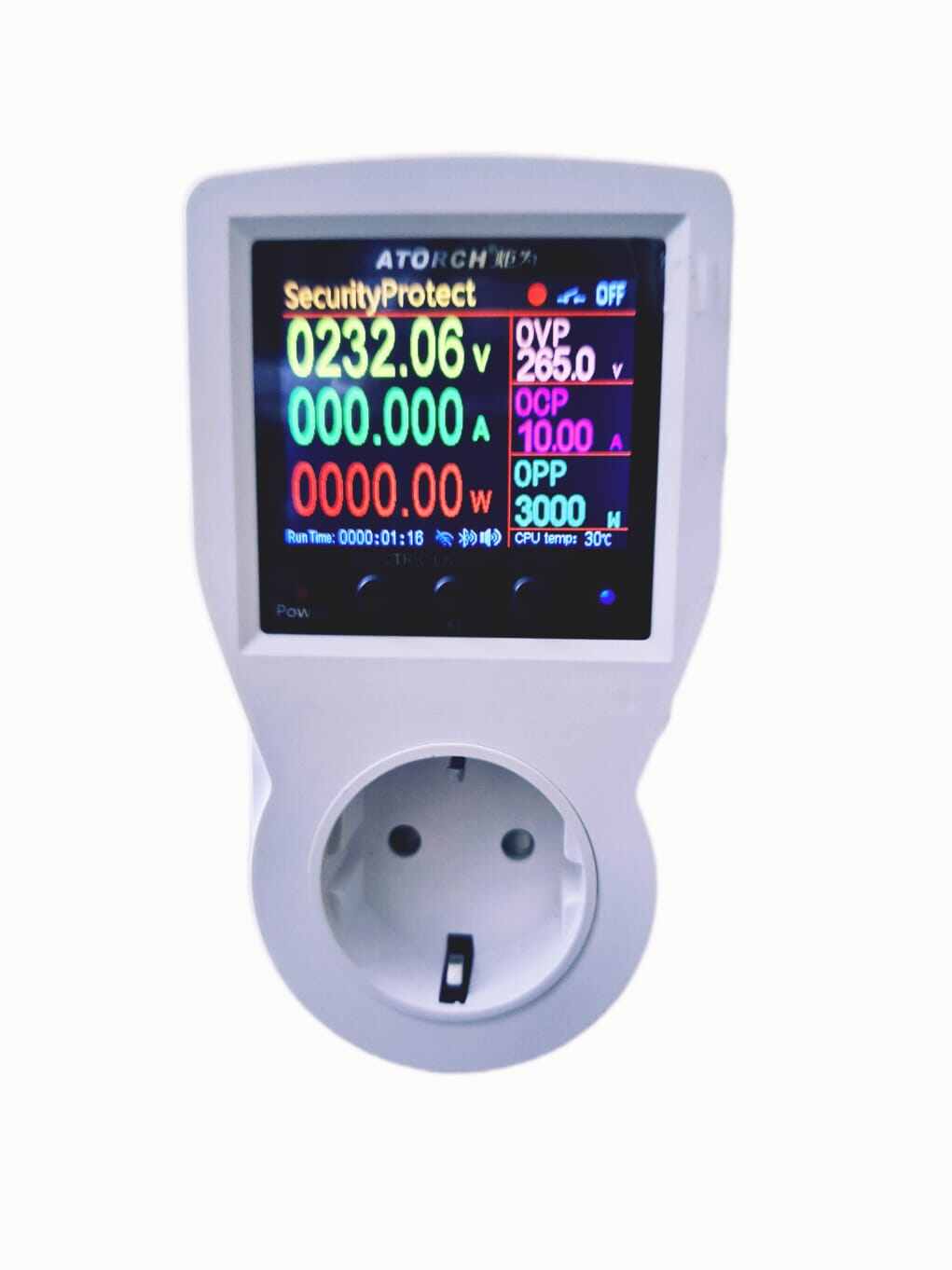

*Over voltage protection

*Over Power protection

*Set the electricity unit price function/accumulate electricity bills

*Cycle timing function

Energy Saving: Ideal for lighting and other devices with adjustable on / off functions, turn on / off according to your specified time.

Product list:

1 * Smart power outlet

1 * Manual

Plug type : EU plug / US plug / UK plug / (optional)

EU plug type E: Primarily used in France, Belgium, Poland, Slovakia & Czechia

EU plug type F: Used almost ererywhere in Europe & Russia, except for the UK & Ireland

Product Overviews

Application
