• 2 Megapixel

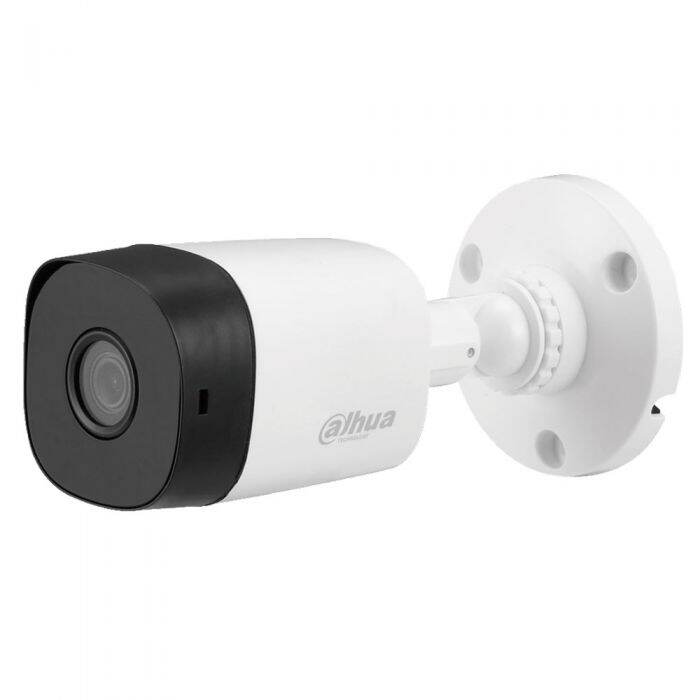

• Model: HAC-B1A21
• Max 30fps@1080P
• HD and SD output switchable
• 3.6mm fixed lens (2.8mm, 6mm optional)
• Max. IR length 20m, Smart IR
• IP67, DC12V
• Image Sensor 1/3" CMOS
• Scanning System Progressive
• Electronic Shutter Speed PAL: 1/25~1/100000s
• NTSC: 1/30~1/100000s
• Minimum Illumination 0.05Lux/F2.0, 0Lux IR on
• S/N Ratio More than 65dB
• IR Distance Up to 20m (66feet)
• IR On/Off Control Auto / Manual
• IR LEDs 12
• Lens Type Fixed lens / Fixed iris
• Mount Type Board-in
• Focal Length 3.6mm (2.8mm, 6mm Optional)
• Max Aperture F2.0
• Angle of View H: 72.3° (91.6°/46°)
• Focus Control N/A
• Close Focus Distance 500mm (400mm/1300mm) 19.69'' (15.75''/51.18'')
• Frame Rate 25/30fps@1080p
• Video Output 1-channel BNC high definition video output / CVBS
• video output (Can switch)
• Day/Night Auto (ICR) / Manual
• OSD Menu Multi-language
• BLC Mode BLC / HLC / DWDR
• WDR DWDR
• Gain Control AGC
• Noise Reduction 2D
• White Balance Auto / Manual
• Smart IR Auto / Manual
• Power Supply 12V DC ±25%
• Power Consumption Max 2.8W (12V DC, IR on)
• Casing Plastic
• Dimensions 154.3mm×69.8mm×69.8mm (6.07"×2.75"×2.75")
• Net Weight 0.20kg (0.44lb)
• Gross Weight 0.27kg (0.60lb)
