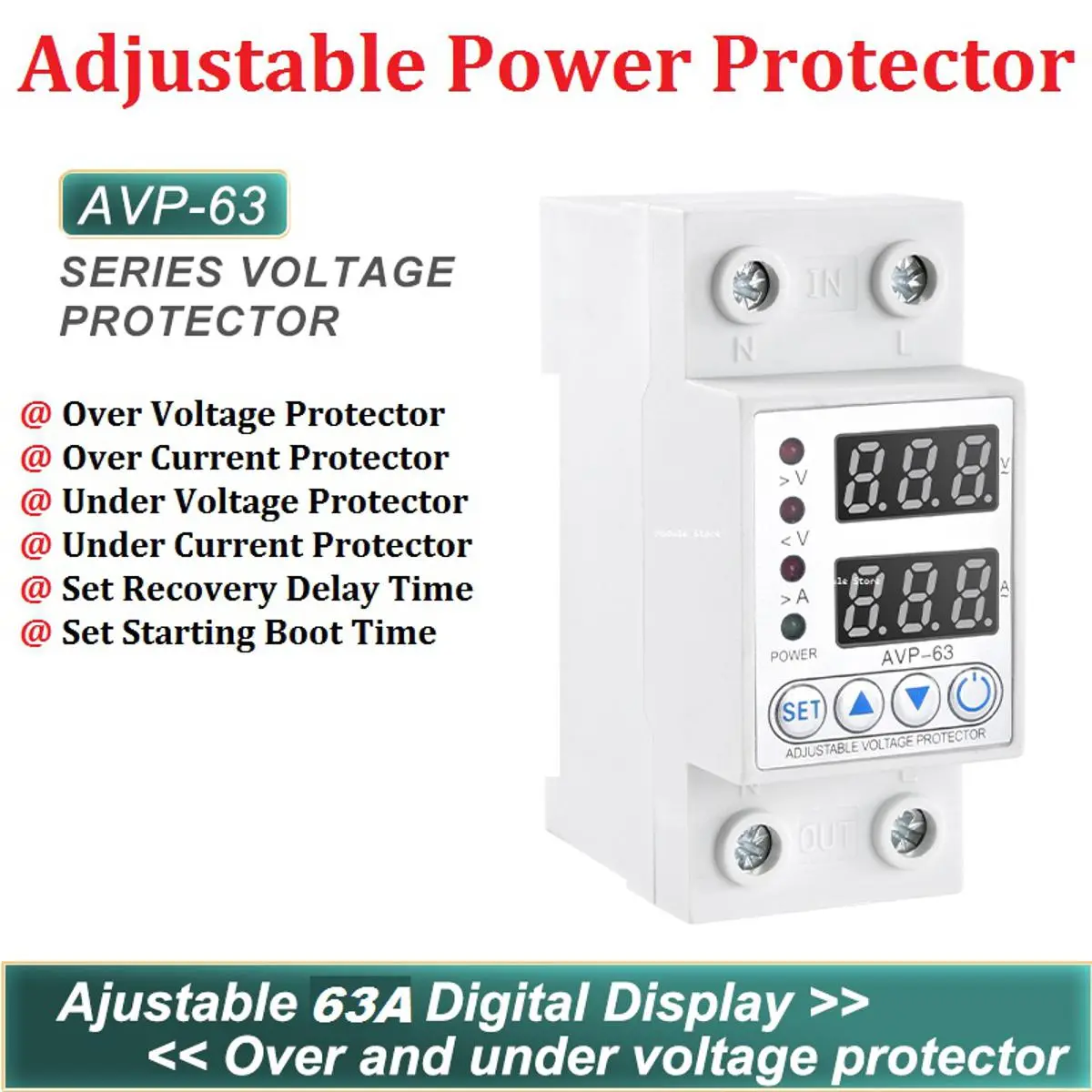

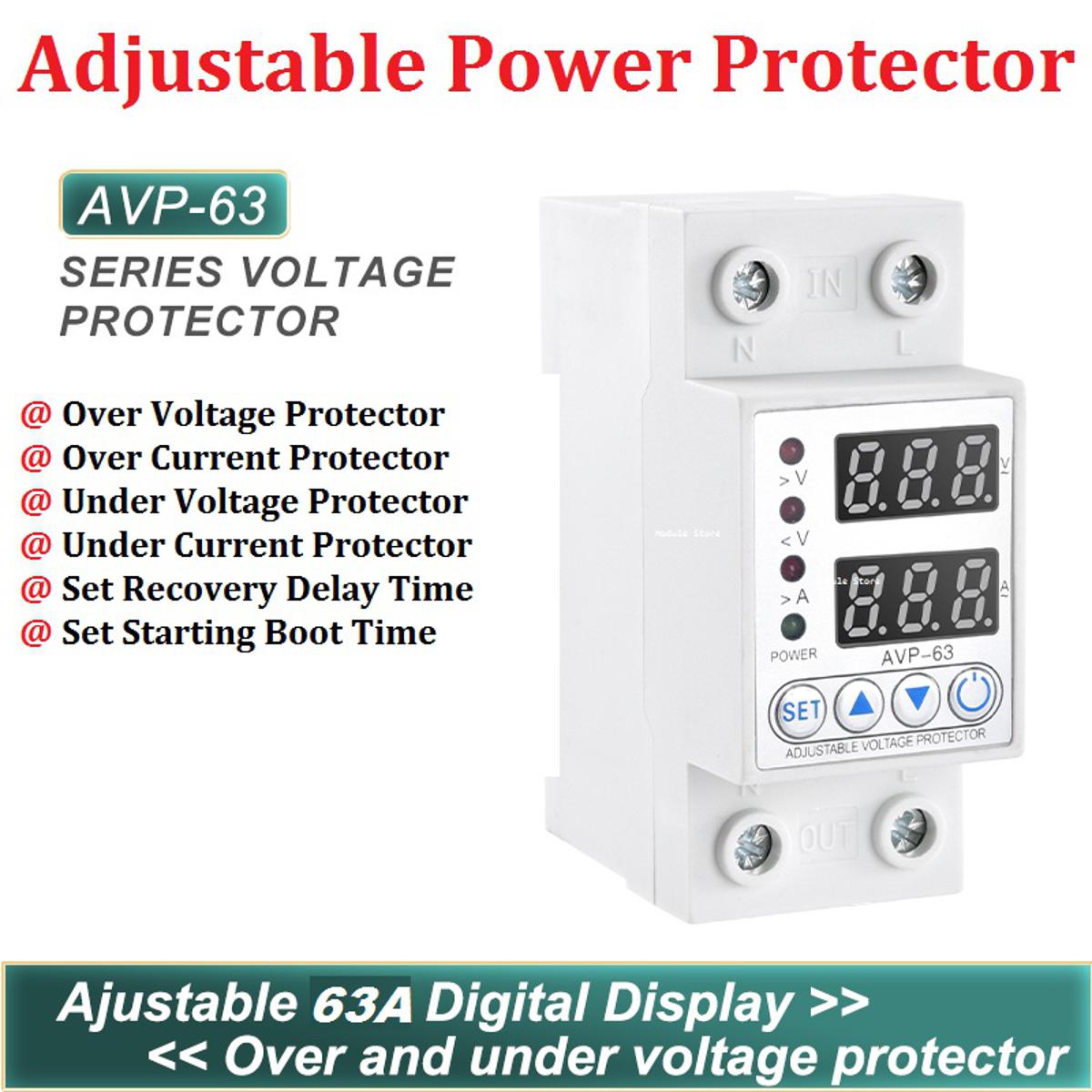

Adjustable Digital Dual Display Real Time Monitoring Over Current Over Voltage Protector AC 220V 63A Household Din Rail

1.Over-voltage protection 2.Under-voltage protection 3.Over-current protection 4.Automatic recovery 5.Voltage display(voltage measurement) 6.Current display (current measurement) 7. Voltage calibration: Voltage +-10% adjustable. A13 8. Restore factory settings: press the down button for more than 12s 9.Fault inquiry: Press the UP button from more than 12S Product Parameters: 1.Model number:TOVPD1-60-EC 2.Power supply:230VAC 50/60Hz 3.Max.Loading power:1~40A Adjustable(default:40A) 1~63A Adjustable(default:63A) 4.Over-voltage protection value range:230V~300~OFF(default:270V) Over-voltage recovery voltage range:225V--295V(default:250V) Over-voltage protection action time:0.1s~30s(default value:0.5s) Over-voltage recovery delay time:1s~500s(default:30s) 5.Under-voltage protection value range:140V--210V --OFF(default:170V) Under-voltage recovery voltage range:145V--215V (default:190V) Under-voltage protection action time:0.1s~30s(default:0.5s) Under-voltage recovery delay time:1s~500s(default:30s) 6.Over-current adjustment range:1-40A (default:20A) 1-63A (default:40A) Over-current action range:0.1~30 second (default:0.5s) Over-currentrecovery delay time:1s~500s(default:30s) 7.Power-on delay time:1s~500s(default:10s) 9.Power consumption : <2W 10.Electric machinery life : 100,000 times 11.Installation:35mm DIN rail

• 1.Over-voltage protection
• 2.Under-voltage protection
• 3.Over-current protection
• 4.Automatic recovery
• 5.Voltage display(voltage measurement)
• 6.Current display (current measurement)
• 7. Voltage calibration: Voltage +-10% adjustable. A13
• 8. Restore factory settings: press the down button for more than 12s
• 9.Fault inquiry: Press the UP button from more than 12S Product
• Parameters:
• 1.Model number:TOVPD1-60-EC
• 2.Power supply:230VAC 50/60Hz
• 3.  1~63A  Adjustable(default:63A)
• 4.Over-voltage protection value range:230V~300~OFF(default:270V)
• Over-voltage recovery voltage range:225V--295V(default:250V)
• Over-voltage protection action time:0.1s~30s(default value:0.5s)
• Over-voltage recovery delay time:1s~500s(default:30s) 5.Under
• voltage protection value range:140V--210V --OFF(default:170V)
• Under-voltage recovery voltage range:145V--215V (default:190V)
• Under-voltage protection action time:0.1s~30s(default:0.5s)
• Under-voltage recovery delay time:1s~500s(default:30s) 6.Over
• current adjustment range:1-40A (default:20A) 1-63A (default:40A)
• Over-current action range:0.1~30 second (default:0.5s) Over
• currentrecovery delay time:1s~500s(default:30s) 7.Power-on delay time:1s~500s(default:10s) 9.Power consumption : <2W 10.Electric machinery life : 100,000 times 11.Installation:35mm DIN rail
