AC Voltmeter 70v-500v 0.56 " RED Display ভোল্টমিটার Red

Name: AC Voltmeter 70v-500v 0.56 " RED Display ভোল্টমিটার Red
SKU: MOS895215
Price: 400.00 BDT
Availability: InStock

Category: Electrical Accessories

SKU: MOS895215

Seller: Module Shop

Tk 400

0 review(s)

Measuring range: AC70V-500V
Power supply range: No additional power supply needed, direct use of the measured voltage as a power supply, range: AC70V-500V
Maximum input AC500V. Note: Input voltage higher than 500V may be permanently damaged!
Allowable error: ± 1%;
Input impedance> 1M ohms
Refresh speed: About 300mS / time
Display mode
Three-digit " 0.56 " LED digital tube
Display the color: Green/Blue/Red
Lead length: about: 20 cm / 7.87 in

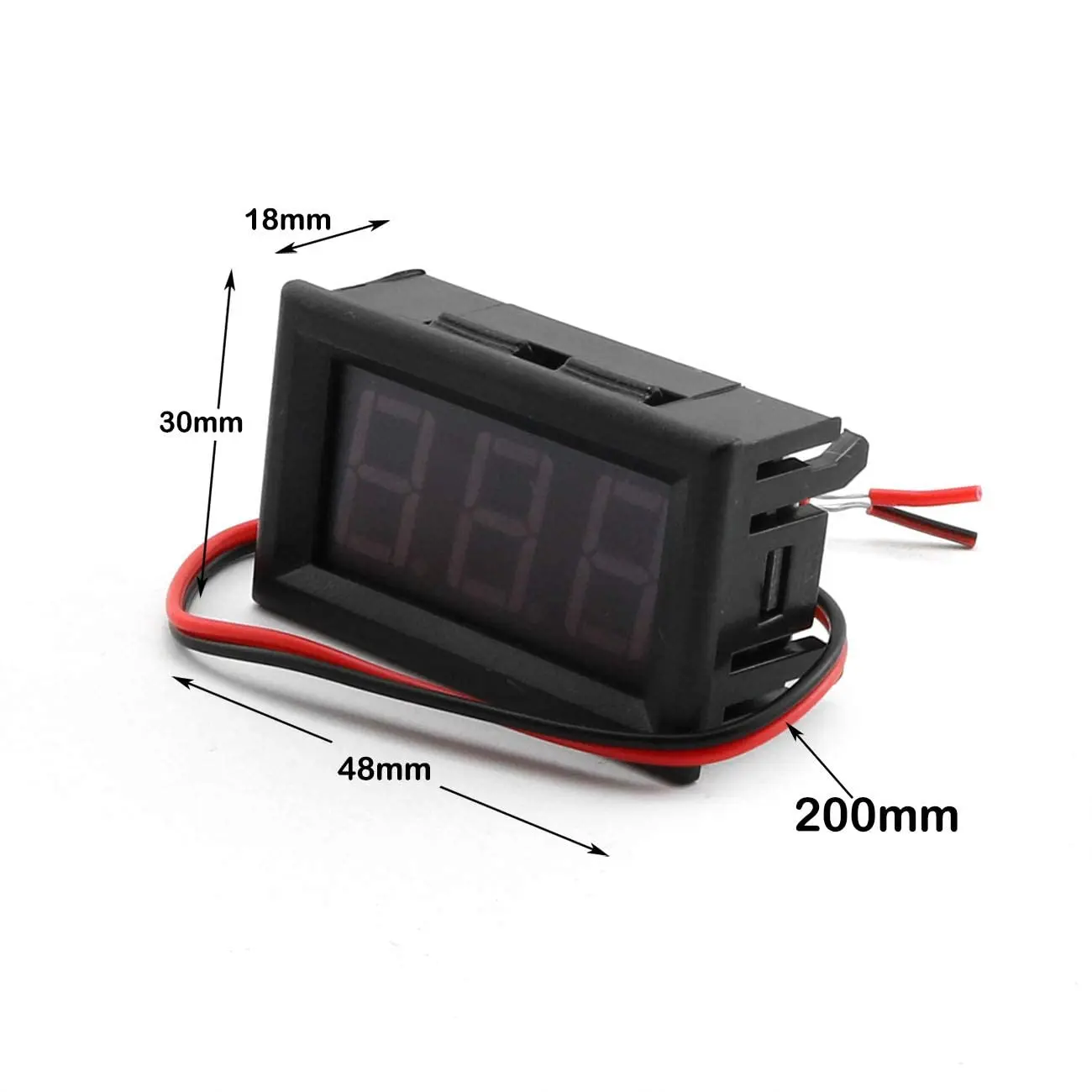

Outside dimensions: about: 4.8 x 2.9 x 2.2 cm / 1.89 x 1.17 x 0.87 in
Hole Size: about 4.6 x 2.7 cm / 1.81 x 1.06 in
Net weight: about 18g
12. Operating temperature: -20 ° C to 65 ° C
4.No retail package

Call For Order : 09613-800800

1. Operating voltage: no need to connect to any power supply, two-wire system - 2. The two-wire voltage meter design, the wiring is simple, easy to install - 3. When there is a slight error, you can calibrate it through the circuit board, "fine-tuning" potentiometer for calibration

Measuring range: AC70V-500V
Power supply range: No additional power supply needed, direct use of the measured voltage as a power supply, range: AC70V-500V
Maximum input AC500V. Note: Input voltage higher than 500V may be permanently damaged!
Allowable error: ± 1%;
Input impedance> 1M ohms
Refresh speed: About 300mS / time
Display mode
Three-digit " 0.56 " LED digital tube
Display the color: Green/Blue/Red
Lead length: about: 20 cm / 7.87 in
Outside dimensions: about: 4.8 x 2.9 x 2.2 cm / 1.89 x 1.17 x 0.87 in
Hole Size: about 4.6 x 2.7 cm / 1.81 x 1.06 in
Net weight: about 18g
12. Operating temperature: -20 ° C to 65 ° C
4.No retail package
