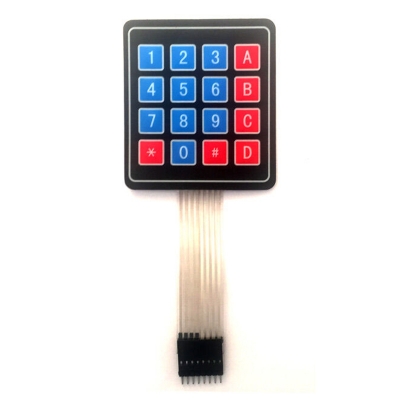

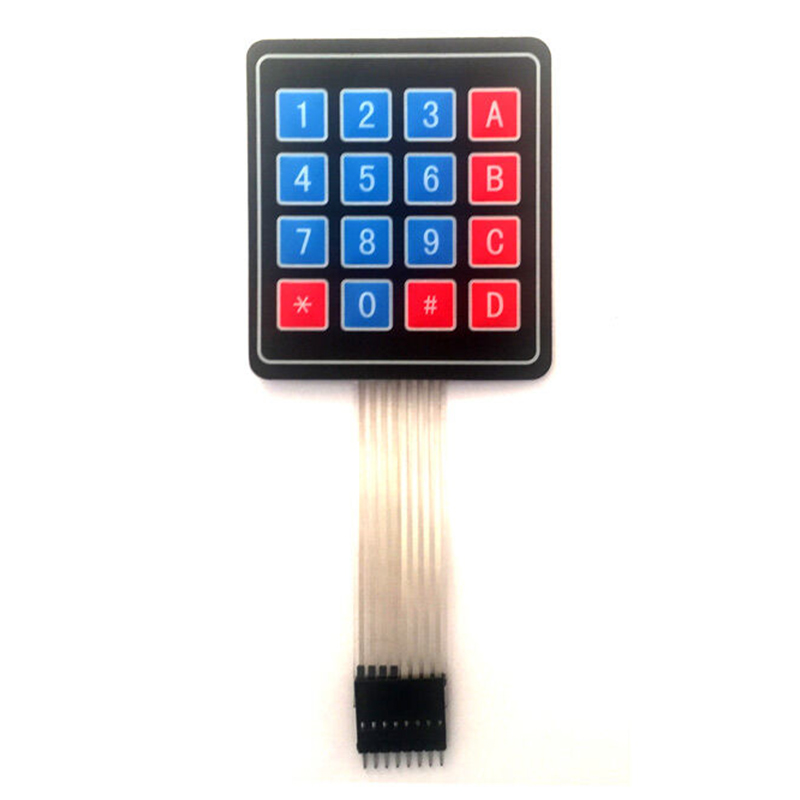

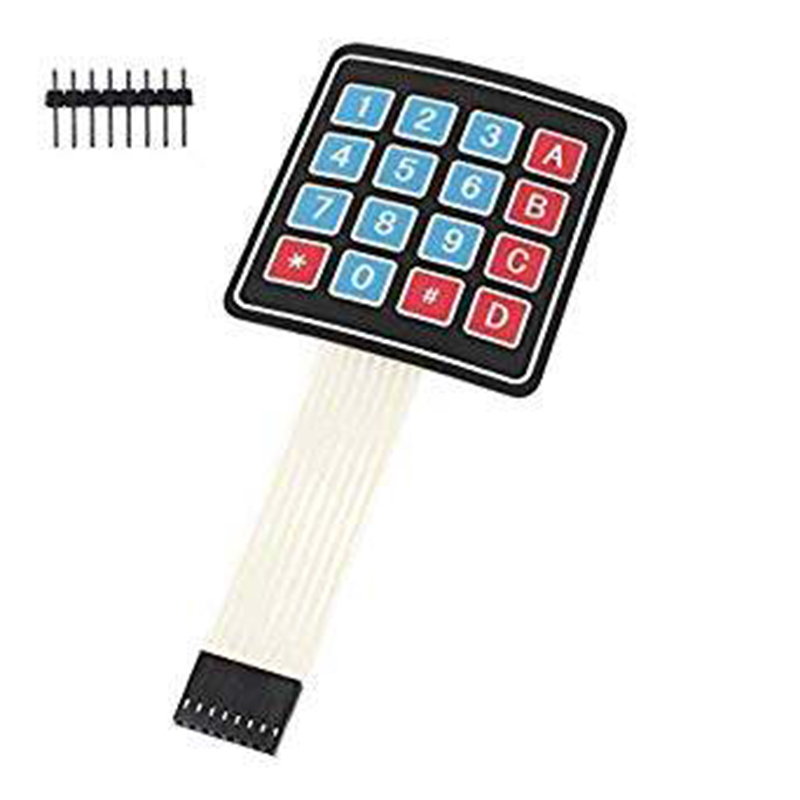

4x4 16Key Mat-rix Keyboard Membrane Switch Keypad-Multicolor

Brand
Category: Computers & Laptops
SKU: ZNTE1048163
Brand: No Brand
Seller: Zannat Engineering
Tk 180
0 review(s)
  • Pad Size: 3″ x 2-3/4″ x 1/30″ or 77 x 70 x 0.8mm
  • Cable Length: 3-1/3″ or 85mm
  • Weight: 9g

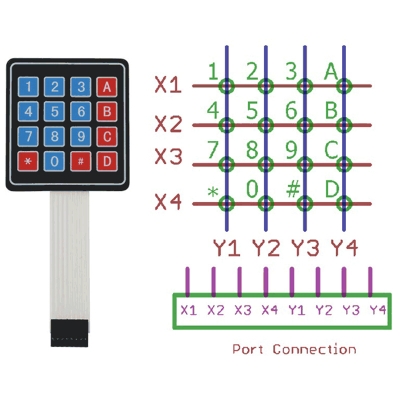

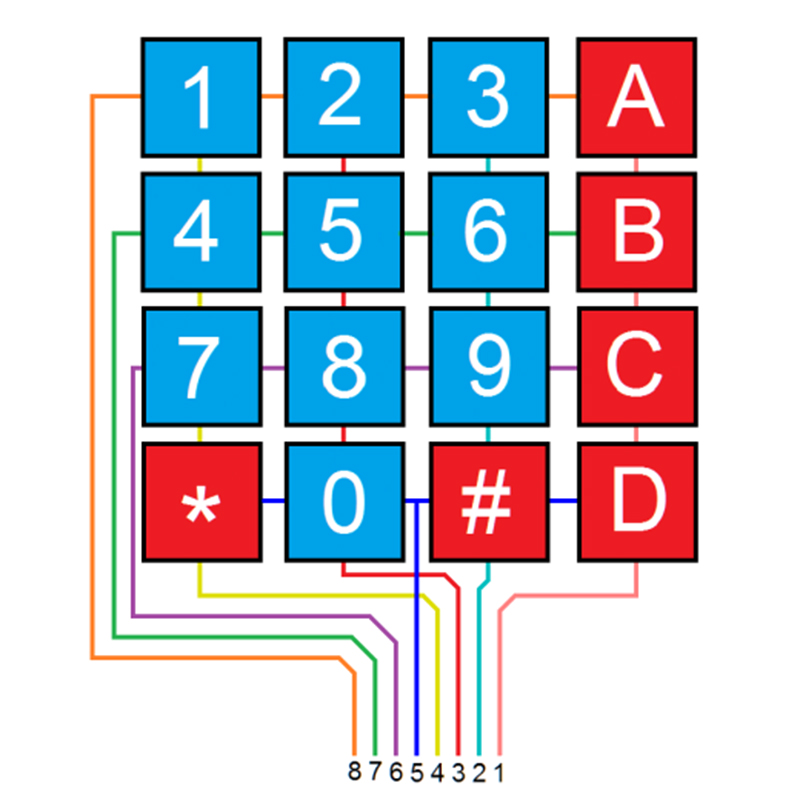

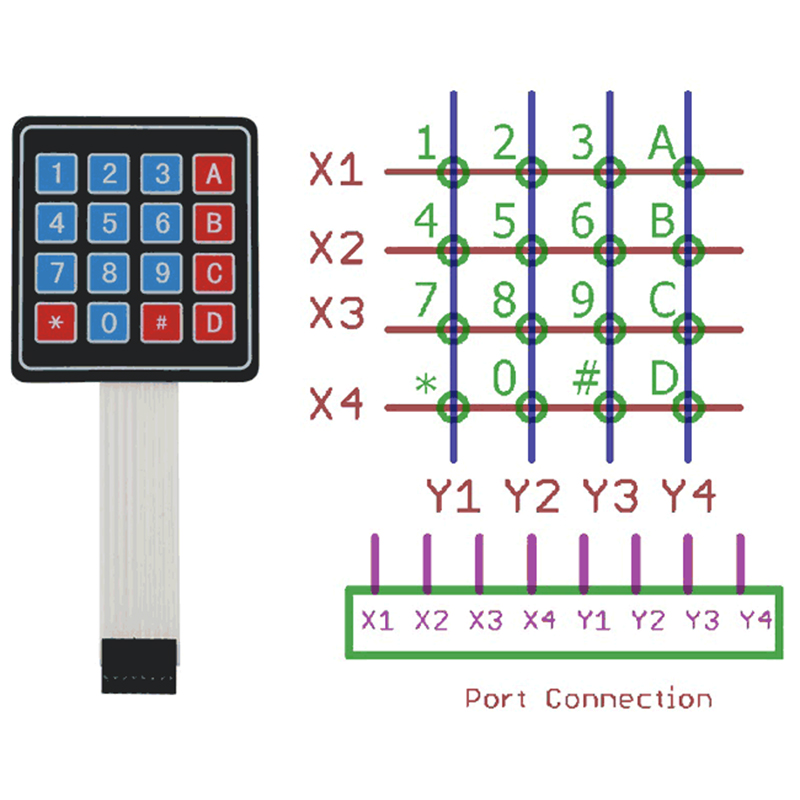

  • Connector: Dupont 8 pins, 0.1″ (2.54mm) Pitch
  • Mount Style:Self-Adherence
  • Max. Circuit Rating: 35VDC, 100mA
  • Insulation Spec.:100M Ohm, 100V
  • Dielectric: Withstand 250VRms (60Hz, 1min)
  • Contact Bounce: <=5ms
  • Life Expectancy: 1 million closures
  • Operation Temperature: -20 to +40 °C
  • Sticker / glue on the back side

Call For Order : 09613-800800
  • Pad Size: 3″ x 2-3/4″ x 1/30″ or 77 x 70 x 0.8mm
  • Cable Length: 3-1/3″ or 85mm
  • Weight: 9g
  • Connector: Dupont 8 pins, 0.1″ (2.54mm) Pitch
  • Mount Style:Self-Adherence
  • Max. Circuit Rating: 35VDC, 100mA
  • Insulation Spec.:100M Ohm, 100V
  • Dielectric: Withstand 250VRms (60Hz, 1min)
  • Contact Bounce: <=5ms
  • Life Expectancy: 1 million closures
  • Operation Temperature: -20 to +40 °C
  • Sticker / glue on the back side
