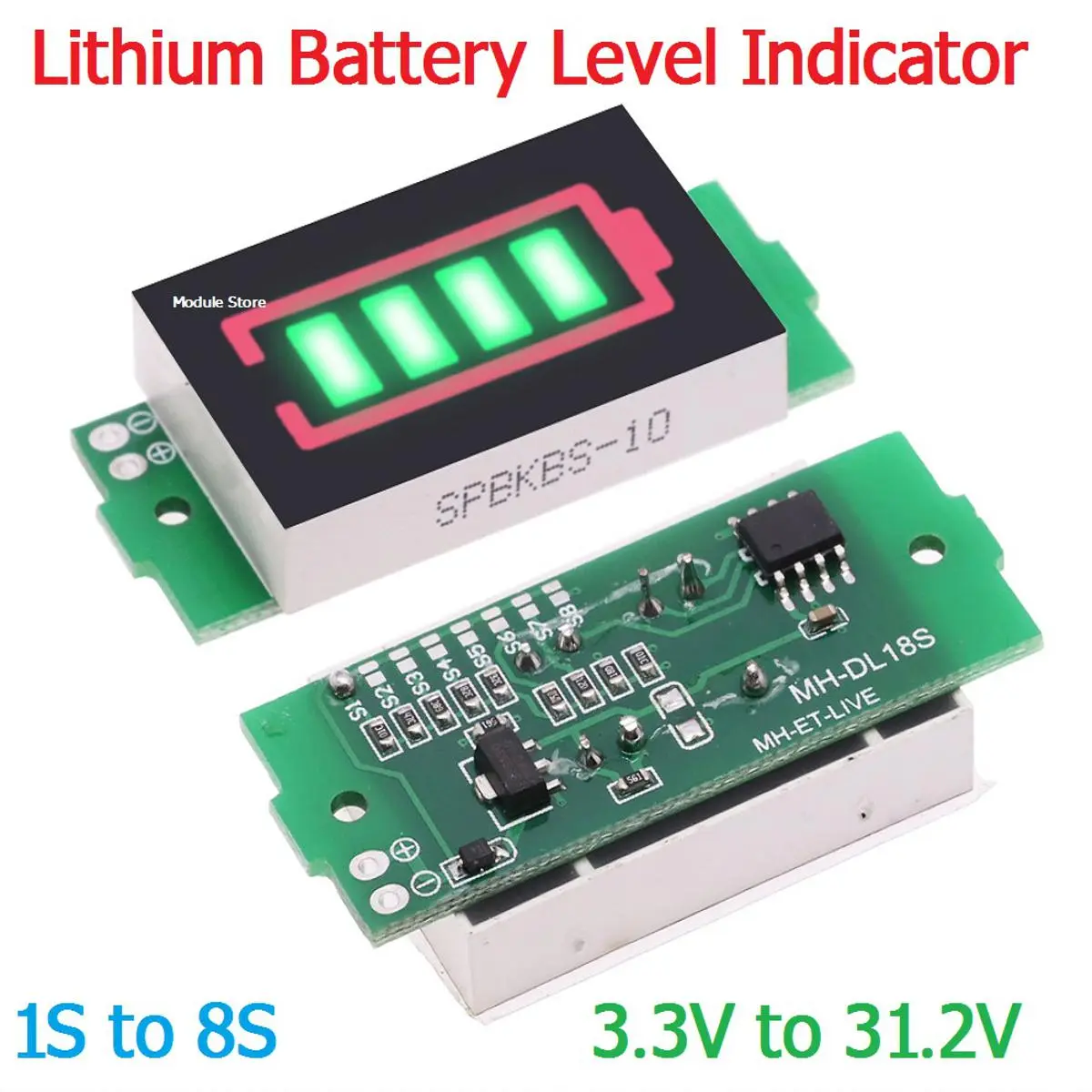

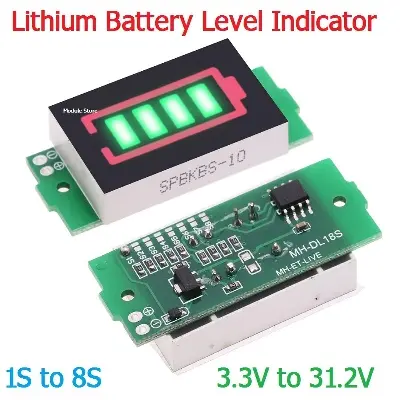

Picture of 1S- 4S-8S Single 3.7V Lithium Battery Capacity Indicator Module 4.2V Blue Display Electric Vehicle Battery Power Tester Li-ion
Picture of 1S- 4S-8S Single 3.7V Lithium Battery Capacity Indicator Module 4.2V Blue Display Electric Vehicle Battery Power Tester Li-ion

1S- 4S-8S Single 3.7V Lithium Battery Capacity Indicator Module 4.2V Blue Display Electric Vehicle Battery Power Tester Li-ion

Category: IPS & Batteries
SKU: MOS896071
Seller: Module Shop
Tk 350
0 review(s)
  • Housing color: black+green
  • Material: Plastic, Electric Components
  • Size : 4.5*2cm
  • Type: 3S/4S/6S/3.7V
  • ** Wide application: Includes nickel-metal hydride batteries, 18650 and polymer lithium battery packs, lead-acid storage, electric vehicle batteries and electric equipment.
  • ** Easy to use: You just connect the positive and negative terminals of the display board to the positive and negative terminals of the battery under test.
  • ** Digital color: Features outline red, display block blue. (When the battery is full ,it will be on entirely)
  • ** Display electricity quantity: (Note: N represents battery quantity)
  • 1. When battery voltage is over N*3.3V, it will illuminate 1 block electricity quantity.
  • 2. When battery voltage is over N*3.5V,it will illuminate 2 blocks electricity quantity
  • 3. When battery voltage is over N*3.7V,it will illuminate 3 blocks electricity quantity
  • 4. When battery voltage is over N*3.9V,it will illuminate 4 blocks electricity quantity
  • 5. When battery voltage is less than N*3.3V,4 blocks display will be off. It means battery is less than 3.3V,and you should charge the battery.
  • Notes:
  • 1. Please allowed 1-3mm differences due to manual measurement, thank you!
  • 2. Due to the difference between different monitors, please understand that the picture may not reflect the actual color of the item.
  • Package list:
  • 1 * lithium battery capacity indicator module

Call For Order : 09613-800800
