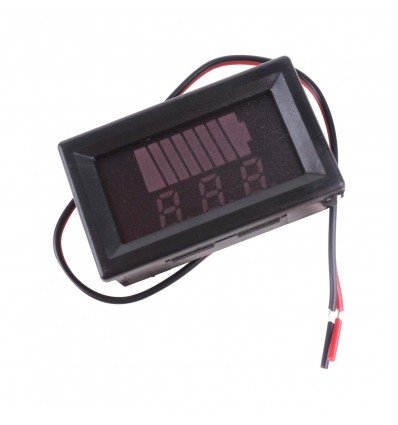

12V Battery Voltage & Charge Capacity Level Indicator Module (Multicolor)

Connected the display panel positive and negative terminals to the tested battery positive and negative side, then the digital tube will show the battery level With a shell, easy to use stand-alone or embedded in the panel on the product.Display Mode: Battery Voltage & Level Indicator

Usage:Connected the display panel positive and negative terminals to the tested battery positive and negative side, then the digital tube will show the battery level

1. Battery voltage is greater than 11.1V, 1 led indicator is lit.
2. Battery voltage is greater than 11.3V, 2 led indicator is lit.
3. Battery voltage is greater than 11.6V, 3 led indicator is lit.
4. Battery voltage is greater than 11.9V, 4 led indicator is lit.
5. Battery voltage is greater than 12.2V, 5 led indicator is lit.
6. Battery voltage is greater than 12.5V, 6 led indicator is lit.
7. Battery voltage is greater than 12.9V, 7 led indicator is lit.
8. Battery voltage is greater than 13.3V, 8 led indicator is lit.
