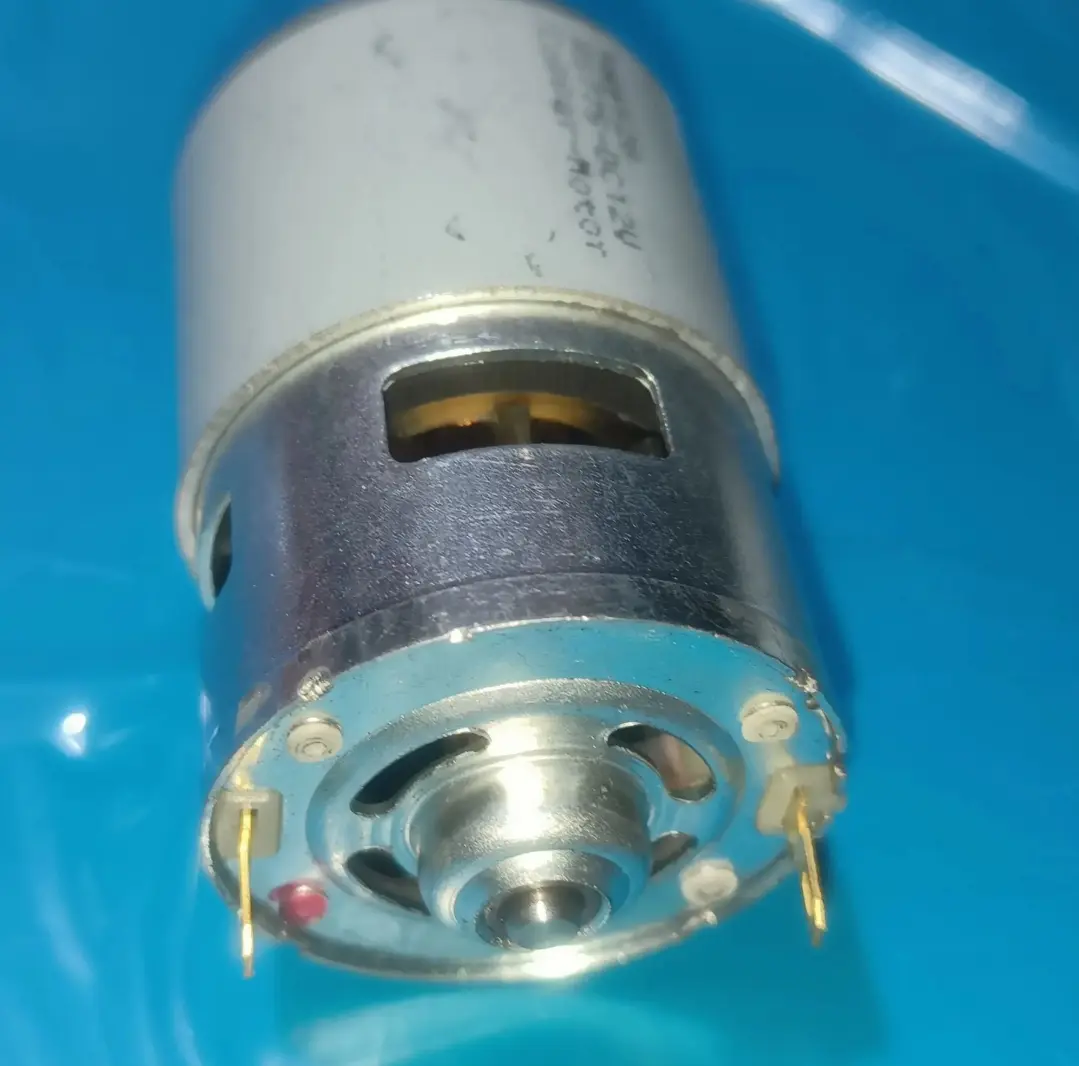

Picture of 12V 775 Copper Bush 5mm Shaft Cooling Fan system 775 DC Motor Replace 775 for DIY Drill Water Pump RC Project

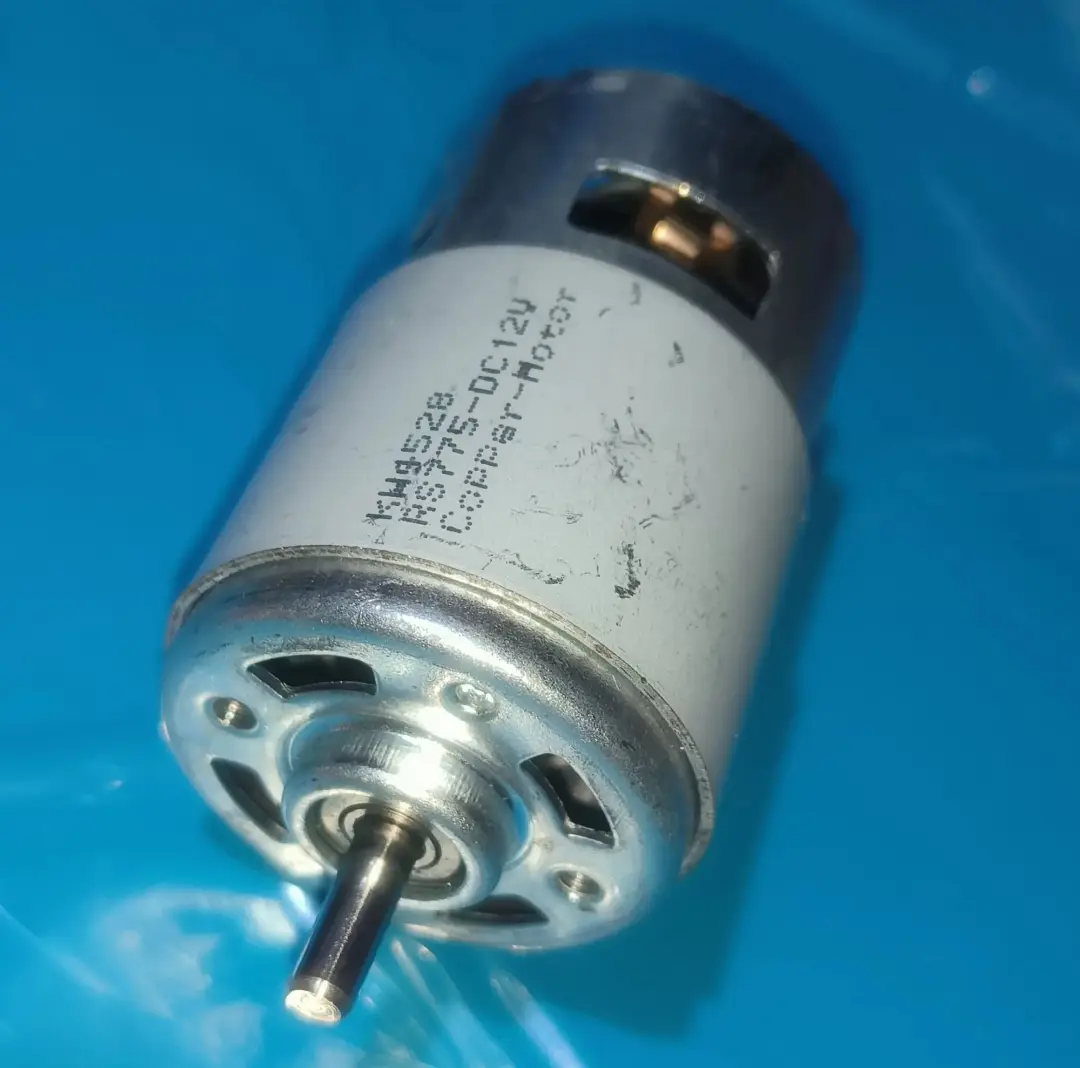

Picture of 12V 775 Copper Bush 5mm Shaft Cooling Fan system 775 DC Motor Replace 775 for DIY Drill Water Pump RC Project
Picture of 12V 775 Copper Bush 5mm Shaft Cooling Fan system 775 DC Motor Replace 775 for DIY Drill Water Pump RC Project

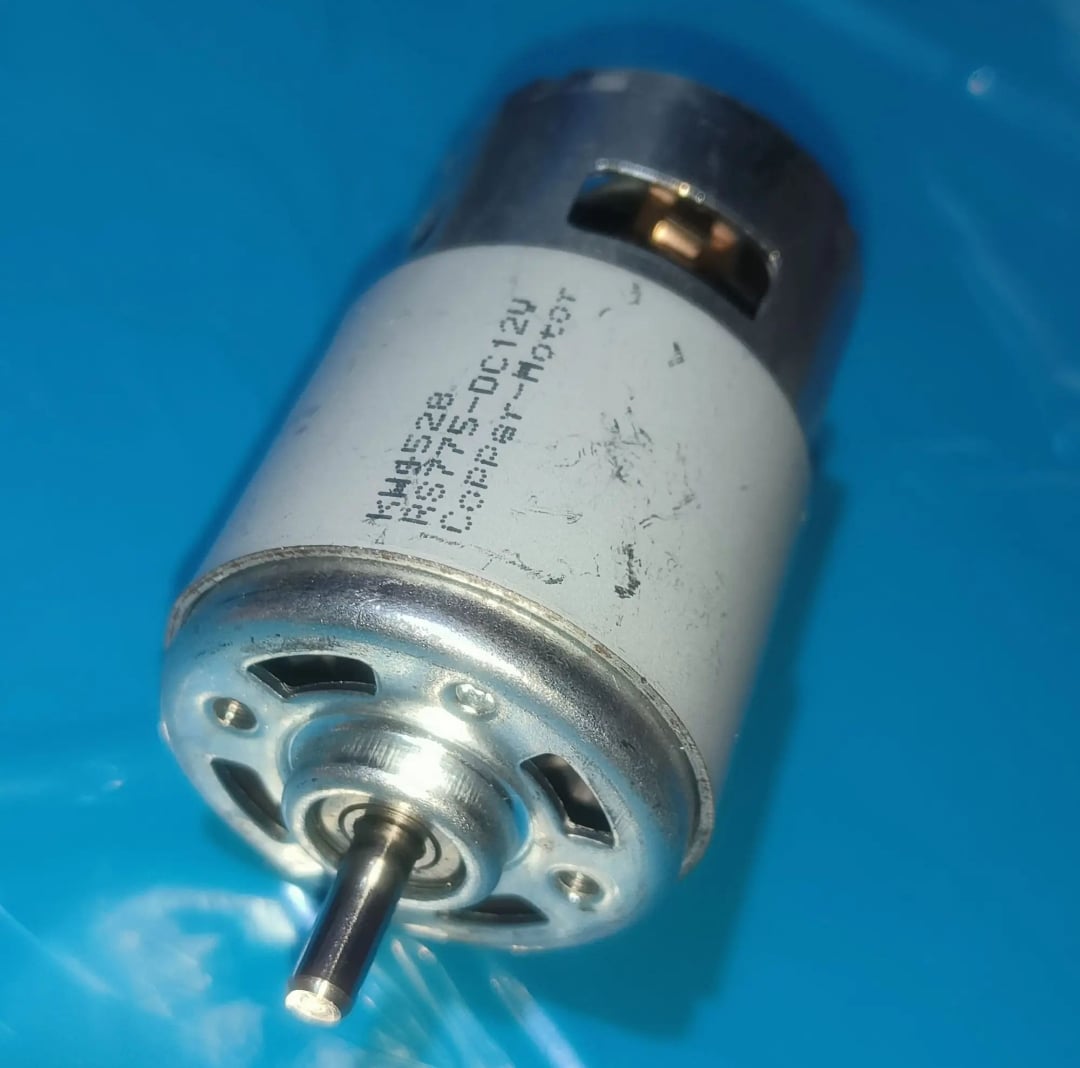

Picture of 12V 775 Copper Bush 5mm Shaft Cooling Fan system 775 DC Motor Replace 775 for DIY Drill Water Pump RC Project
Picture of 12V 775 Copper Bush 5mm Shaft Cooling Fan system 775 DC Motor Replace 775 for DIY Drill Water Pump RC Project
Picture of 12V 775 Copper Bush 5mm Shaft Cooling Fan system 775 DC Motor Replace 775 for DIY Drill Water Pump RC Project

12V 775 Copper Bush 5mm Shaft Cooling Fan system 775 DC Motor Replace 775 for DIY Drill Water Pump RC Project

Category: Water Pump
SKU: MOS895944
Seller: Module Shop
Tk 750
0 review(s)
  • 1.Brand: JOHNSON_MOTOR
  • 2.Model number: 70073 (RS-775 Motor)
  • 3.Motor diameter: 42.2mm (with cover ring 46.5mm)
  • 4.Motor height: 66.5mm (include step height 71mm)
  • 5.Output shaft diameter: 5mm
  • 6.Output shaft length: 12mm
  • 7.Mounting hole diameter: 4mm
  • 8.Mounting hole distance: 29mm
  • 9. Weight: 410g
  • 10.Rated voltage: DC 18V
  • 11.Suitable voltage: DC 5V-18V
  • 12.Test data:

  • Voltage: 5V No-load current:1.4A No-load speed:5600RPM
    Voltage:12V No-load current:2.3A No-load speed:14500RPM
    Voltage:18V No-load current:3.2A No-load speed:21000RPM
    13. Note: This batch of motors belongs to stock motor, the shell of the motor is partially galvanized and has white oxidation traces.

Call For Order : 09613-800800
  • .Model number: 70073 (RS-775 Motor)
  • 3.Motor diameter: 42.2mm (with cover ring 46.5mm)
  • 4.Motor height: 66.5mm (include step height 71mm)
  • 5.Output shaft diameter: 5mm
  • 6.Output shaft length: 12mm
  • 7.Mounting hole diameter: 4mm
  • 8.Mounting hole distance: 29mm
  • 9. Weight: 410g
  • 10.Rated voltage: DC 18V
  • 11.Suitable voltage: DC 5V-18V
  • 12.Test data:
  • Voltage: 5V No-load current:1.4A No-load speed:5600RPM
  • Voltage:12V No-load current:2.3A No-load speed:14500RPM
  • Voltage:18V No-load current:3.2A No-load speed:21000RPM
  • 13. Note: This batch of motors belongs to stock motor, the shell of the motor is partially galvanized and has white oxidation traces.





  • 1.Brand: JOHNSON_MOTOR
  • 2.Model number: 70073 (RS-775 Motor)
  • 3.Motor diameter: 42.2mm (with cover ring 46.5mm)
  • 4.Motor height: 66.5mm (include step height 71mm)
  • 5.Output shaft diameter: 5mm
  • 6.Output shaft length: 12mm
  • 7.Mounting hole diameter: 4mm
  • 8.Mounting hole distance: 29mm
  • 9. Weight: 410g
  • 10.Rated voltage: DC 18V
  • 11.Suitable voltage: DC 5V-18V
  • 12.Test data:

  • Voltage: 5V No-load current:1.4A No-load speed:5600RPM
    Voltage:12V No-load current:2.3A No-load speed:14500RPM
    Voltage:18V No-load current:3.2A No-load speed:21000RPM
    13. Note: This batch of motors belongs to stock motor, the shell of the motor is partially galvanized and has white oxidation traces.
